The Ecowitt gateway weather station includes a solar powered 7-in-1 outdoor sensor and the choice of IoT WiFi gateways. This station makes an ideal starter pack for those that wanting a weather station with full internet access and that can be expanded.

The outdoor 7-in-1 sensor measure temperature, humidity, wind speed, wind direction, rainfall, UV level and light intensity.

The gateway can be configured through the Ecowitt App or a web browser so a smart device is optional for the setup. The gateway connects to the included outdoor sensor array along with a variety of additional optional sensors. With Internet of Things (IoT) the gateway can control and manage Ecowitt IoT devices such as water valves and power sockets. This is a great starter pack for setting up your own weather station ecosystem.

The WiFi gateway is USB powered and also has indoor temperature, humidity and barometric pressure sensors on a wired probe so that they can be kept away from sources of heat which would skew readings.

The GW1201 model includes the standard WiFi gateway with IoT control, or there is the GW3002 models which adds a wired LAN port, external antenna and MicroSD card slot for local data recording.

All the sensor data is uploaded to the Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. All of this can be viewed on the App, or Ecowitt weather website in a browser.

You are not just limited to weather data on the Ecowitt weather site or App, you can optionally share your data further afield with access to:

• Weather Underground - free
• WeatherCloud - optional subscription
• your own web server
• HomeSeer smart home integration
• Home Assistant smart home integration

All additional sensors can be viewed in the Ecowitt App, or online via Ecowitt.net and within 3rd party services that support this additional sensor type.

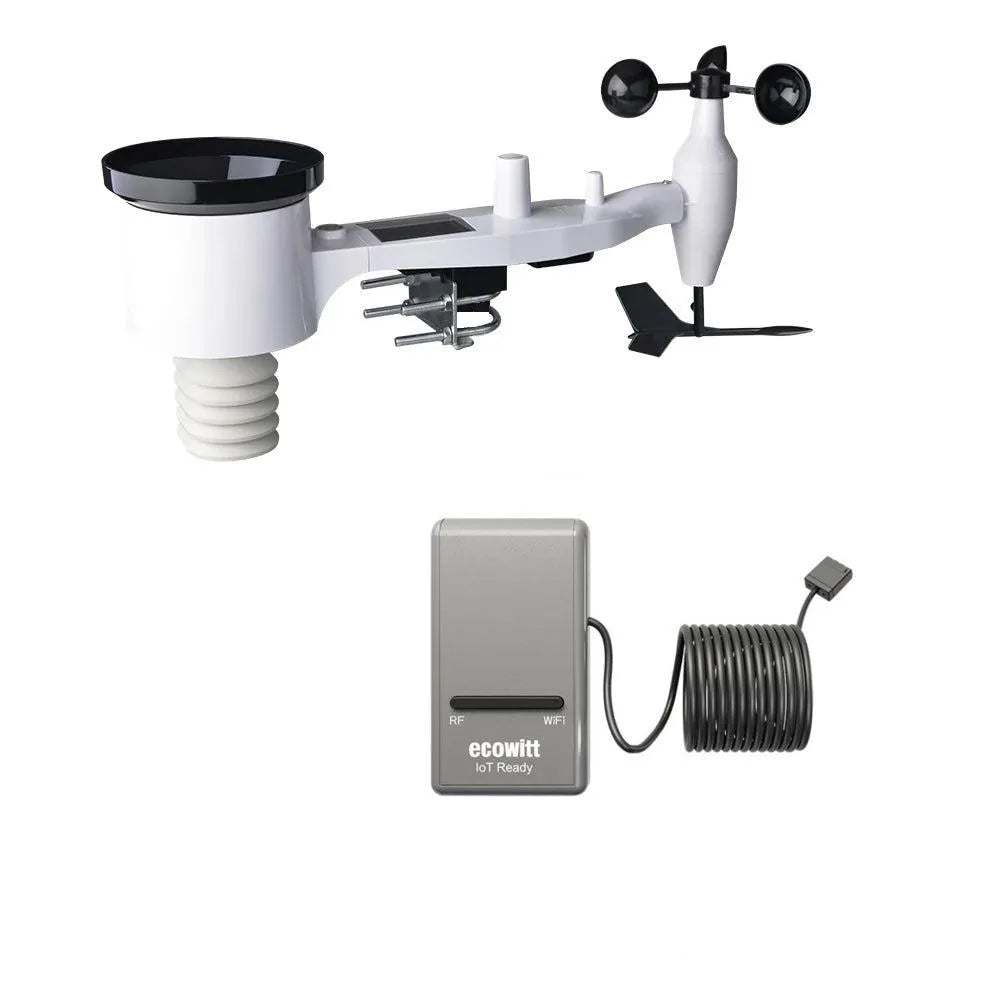

Included

The Ecowitt gateway station includes the following items:

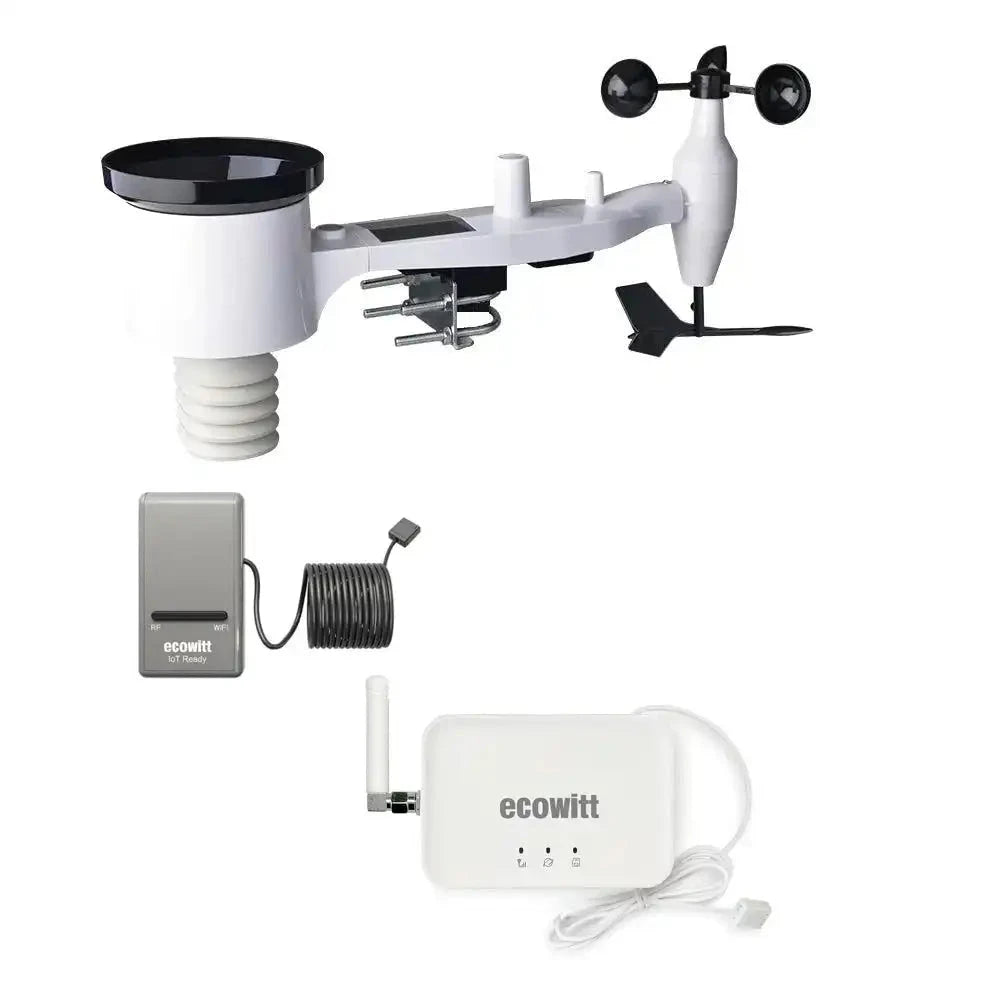

• A choice of
  • GW1200AE IoT WiFi gateway (GW1201 model)

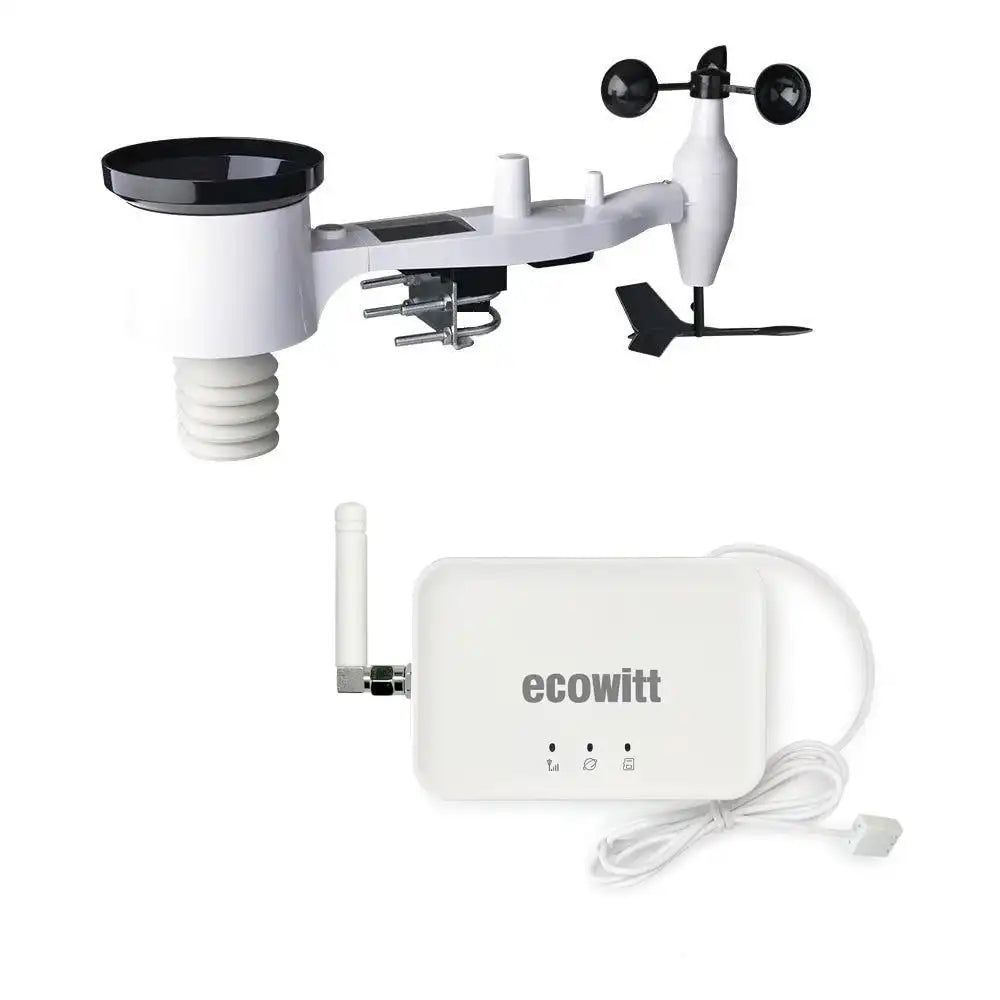

  • GW3000 AEIoT WiFi gateway, wired LAN and MicroSD card slot (GW3002 model)

• USB extension cable for gateway (GW1201)
• WS69AE 7-in-1 sensor array 868MHz
  • Pre installed rain cone
  • Wind vane
  • Wind cups
  • Installation bracket  for 25-50mm pole (pole not supplied as standard)
• All products 868MHz (AE suffix)
• Instruction manual via electronic delivery

Technical & Manual

WiFi Gateway with USB power

• 3 Built-in sensors
  • Temperature (-10°C - 60°C; resolution: 0.1°C)
  • Humidity (1% ~ 99%; resolution: 1%; accuracy: ± 5% )
  • Atmospheric pressure sensor (300 – 1,100 hPa ; accuracy: ± 5 hPa)
• Configure WiFi gateway via your web browser or App
• Configure additional sensors via your web browser or App
• Ecowitt IoT device control
• GW3002 adds wired LAN, MicroSD card slot and external antenna
• Publishes sensor data to Internet based weather services including
  • Ecowitt weather server: ecowitt.net
  • WeatherUnderground.com
  • WeatherCloud
  • Only sensor data supported by each specific service will be uploaded.
• View historical records from your weather station (outdoor temperature, humidity, wind, rain)
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300ft/100M (in open areas)
• 868MHz UK and European frequency (AE suffix)
• The gateway is USB powered (power supply available separately)

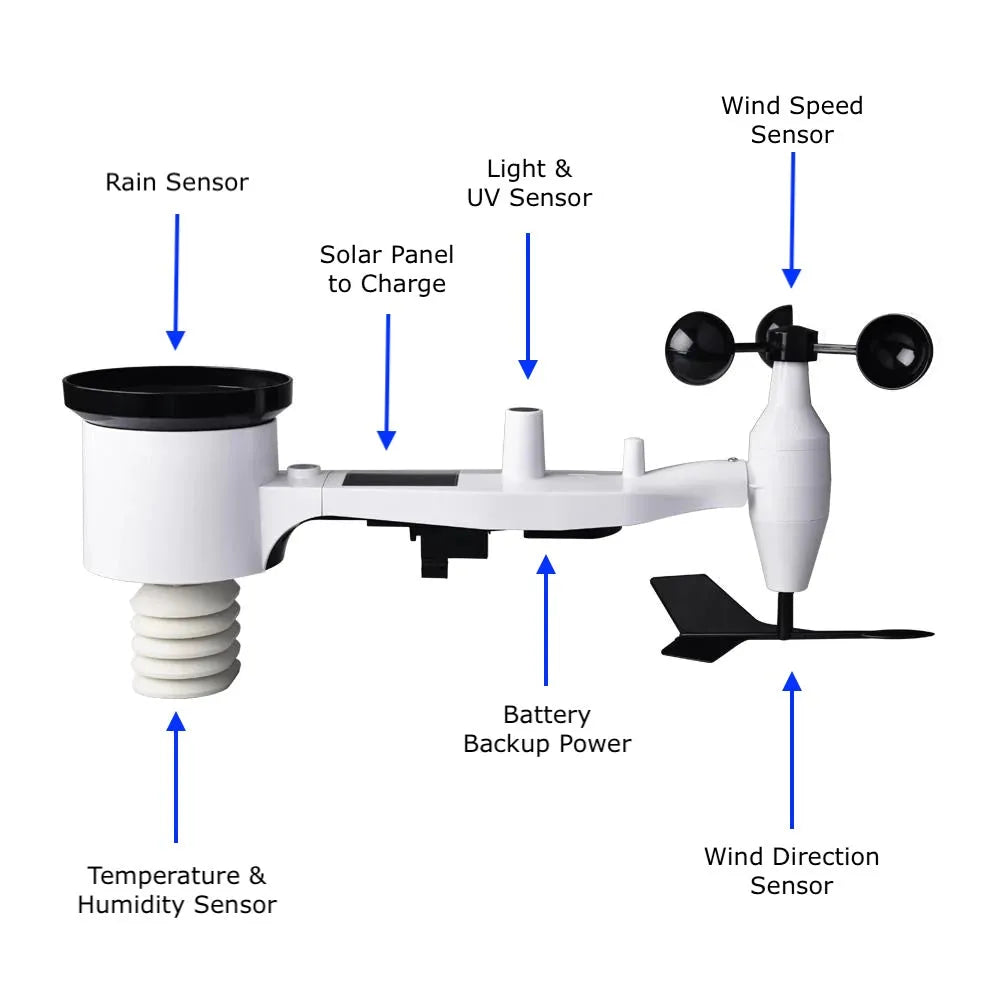

WS69AE 7-in-1 sensor suite

• Outdoor temperature and humidity
• Wind speed, gust speed, and wind direction
• Rainfall rate and totals for day, week, month, and year
• Calculated wind chill, dew point and heat index display on the App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency (AE suffix)
• Mounting bracket for 25-50mm pole (pole not supplied as standard)

IMPORTANT quick start for GW1200 gateway setup can be downloaded here.
