The Ecowitt GW1202 weather station consists of the anemometer with solar radiation and UV Sensor, a separate outdoor temperature and humidity sensor along with the revised IoT WiFi gateway (GW1200) and self emptying rain gauge making a great sensor set for those that want a modular weather station with full internet access.

The anemometer sensor (WS68) not only measures wind speed and direction, but also UV level and light intensity. Mounting these additional sensors on the anemometer ensures that they can be placed to receive maximum exposure to the elements.  The anemometer sensors are powered by solar power and also battery which makes for infrequent battery changes.

Also included is a separate outdoor temperature and humidity sensor (WN32) which allows for versatile placement out of direct rain and sun for precise readings.

The a separate rain sensor (WH40H) measures rain fall and is self emptying for easy of use. Unlike some other manufacturers, this rain sensor measures in 0.1mm increments which is better than many premium brands.

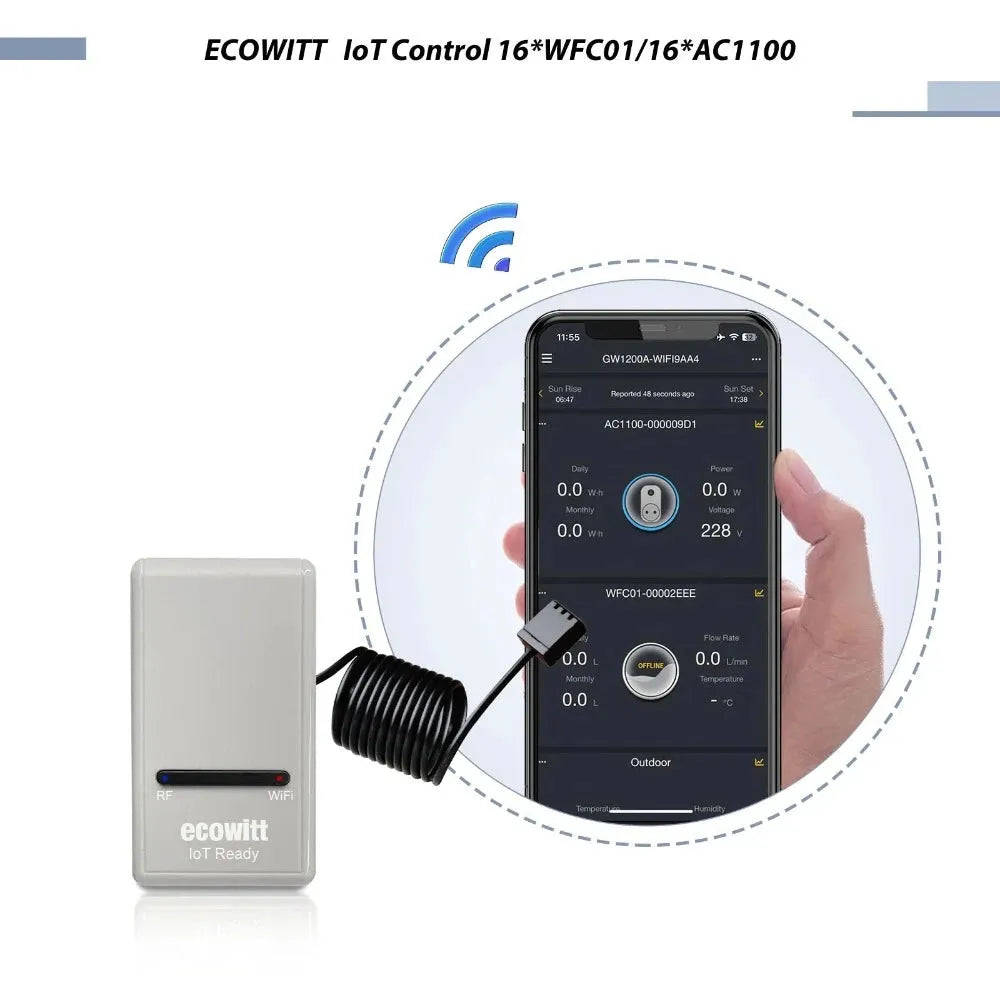

The included GW1200 WiFi gateway can be configured through the Ecowitt App or through a web browser so a smart device is optional for the setup. The gateway connects to the included outdoor sensor array along with a variety of additional optional sensors. Being an IoT gateway in can control and manage IoT devices such as the WFC01 water valves and AC1100 power sockets. This is a great starter pack for setting up your own weather station ecosystem.

The gateway is USB powered and also has indoor temperature, humidity and barometric pressure sensors on a wired probe so that they can be kept away from sources of heat which would skew readings.

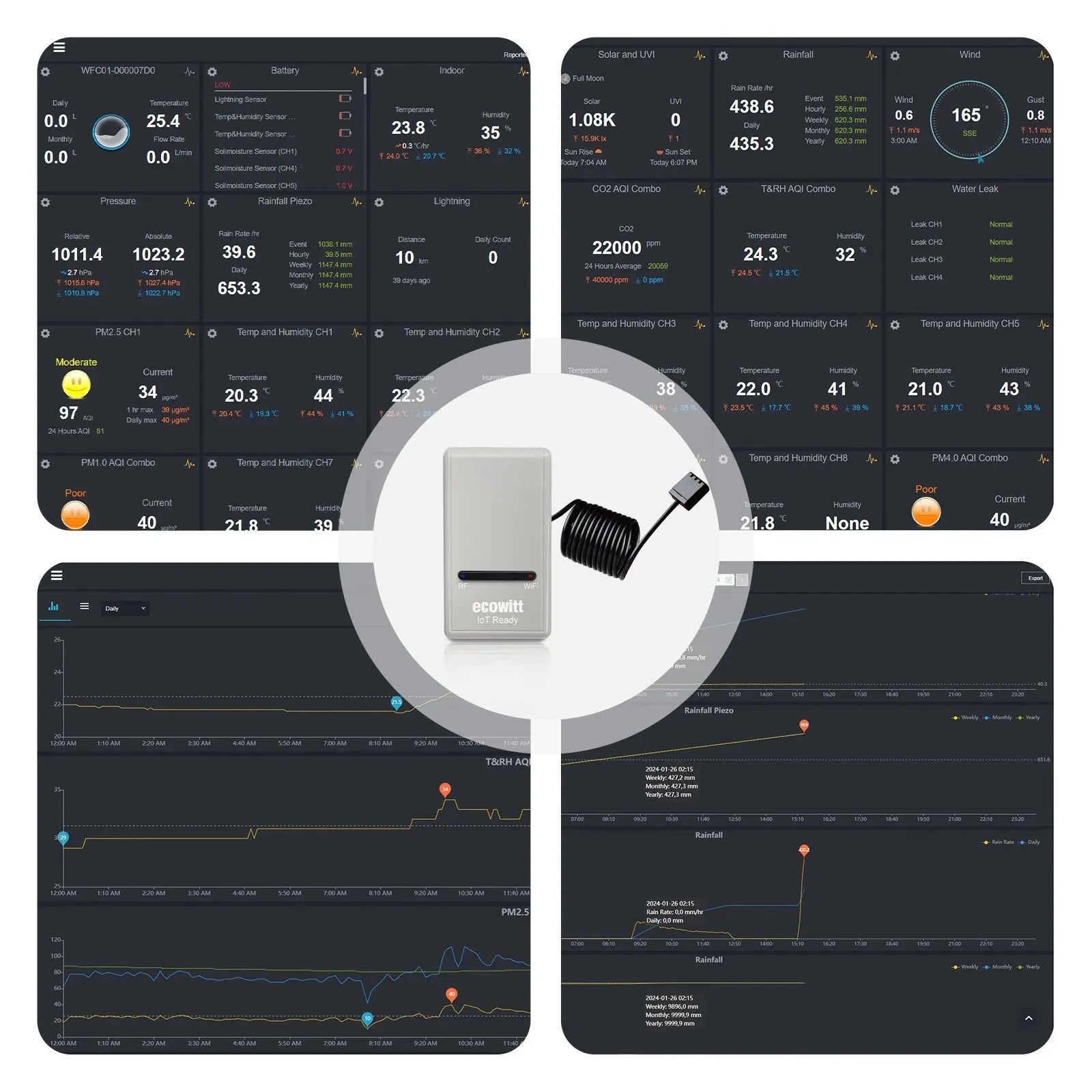

All the sensor data is uploaded to the Ecowitt service via WiFi and is used to calculate rainfall rate, wind chill, dew point and heat index. This can be viewed on the App, or Ecowitt weather website in a web browser.

But you are not just limited to weather data on the Ecowitt weather site or App, you can optionally share your data further afield with access to:

• Weather Underground - free
• WeatherCloud - optional subscription
• your own web server
• HomeSeer smart home integration
• Home Assistant smart home integration

Unlike some other stations, the Ecowitt GW1202 can be used with a variety of sensors,  click here to view the latest Ecowitt sensor matrix following the column for the GW1200 gateway to see suitable sensors.

All additional sensors can be viewed in the Ecowitt App, or online via Ecowitt.net and within 3rd party services that support this additional sensor type.

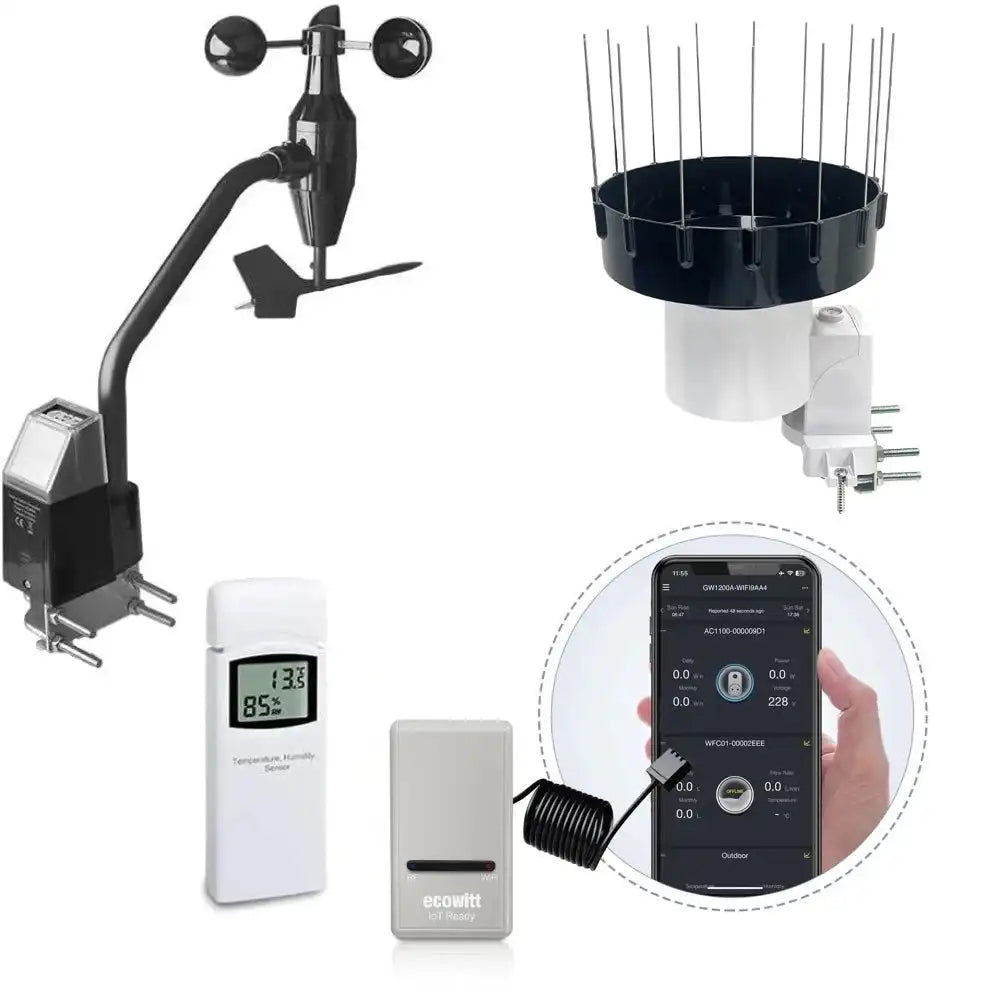

Included

The Ecowitt GW1102 includes the following items:

• GW1200 WiFi gateway

• USB extension cable for GW1200
• WS68 Solar Anemometer, Light and UV sensor array
• WN32 2-in-1 primary outdoor temperature and humidity sensor
• WH40H Rainfall sensor with built in anti-bird spikes

• Installation brackets for 25-50mm pole (pole not supplied as standard)
• Instruction manuals, also available online
• 2 year warranty for stations purchased 1st January 2025 onward

Technical & Manual

The GW1102 consists of three key components.

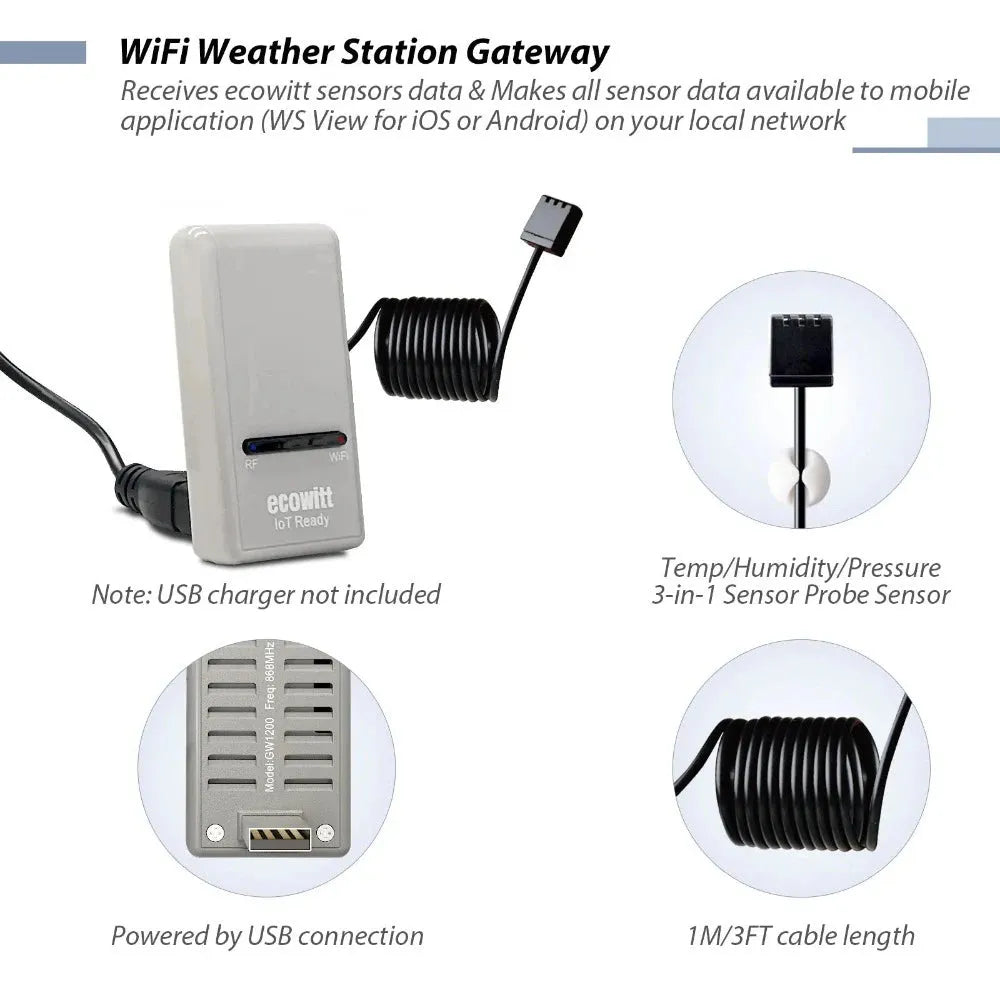

GW1200 IoT WiFi Gateway

• 3 Built-in indoor sensors
• Temperature (-10°C - 60°C; resolution: 0.1°C)
• Humidity (1% ~ 99%; resolution: 1%; accuracy: ± 5% )
• Atmospheric pressure sensor (300 – 1,100 hPa ; accuracy: ± 5 hPa)
• Controls Ecowitt IoT devices
• Configure gateway WiFi via web browser or App
• Configure additional sensors via browser or App
• Publishes sensor data to Internet based weather services including
• Ecowitt weather server: ecowitt.net
• WeatherUnderground.com
• WeatherCloud
• Only sensor data supported by each specific service will be uploaded
• View historical records from your weather station (outdoor temperature, humidity, wind, rain)
• View all current sensor and historical records, and graphs on Ecowitt.net server. History records can also be exported in Excel format
• Wireless Range from external sensors: 300 feet / 100m (in open areas)
• 868MHz UK and European frequency
• GW1200 gateway is USB powered (power supply available separately)

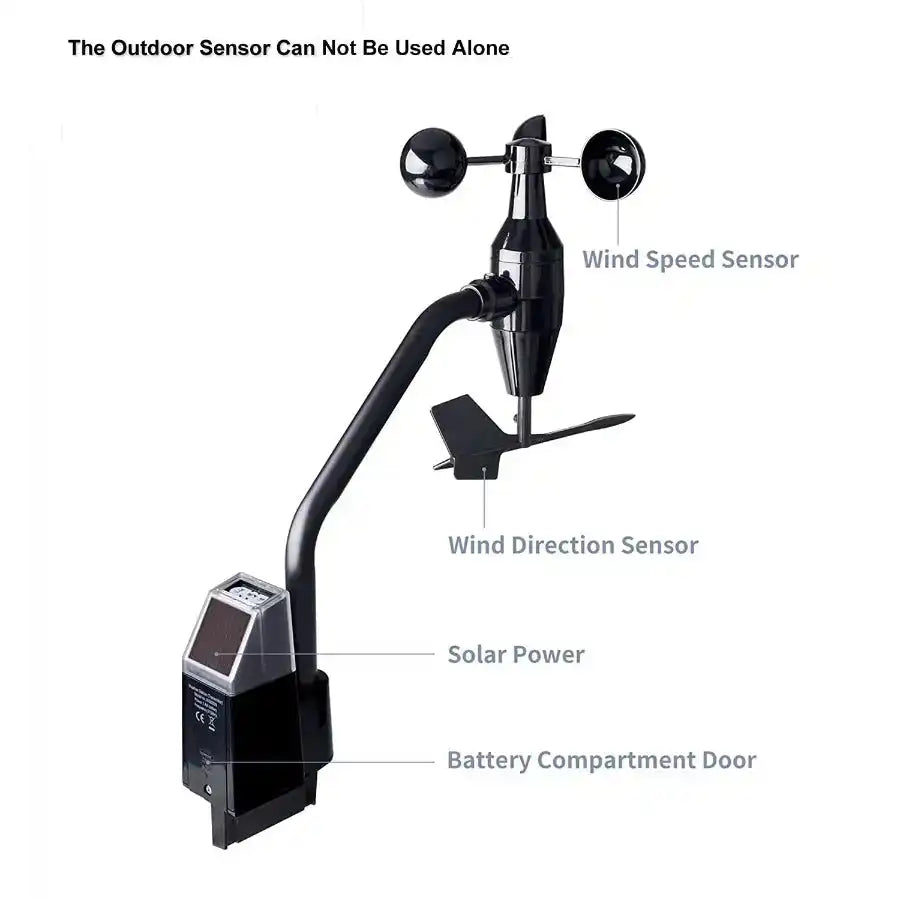

Solar powered Anemometer WS68

• Wind speed, gust speed, and wind direction

• Calculated wind chill, dew point and heat index display on the App
• Solar light intensity
• UV index
• Solar powered with 2 x AA battery backup
• 868MHz UK and European frequency
• Mounting bracket for 25-50mm pole (pole not supplied as standard)

Temperature & Humidity sensor WN32

• Temperature measurement
• Humidity measurement
• 1 channel sensor
• Calculated wind chill, dew point and heat index display on the WS View App

• Powered with 2 x AA batteries

• 868MHz UK and European frequency
• Mounting bracket

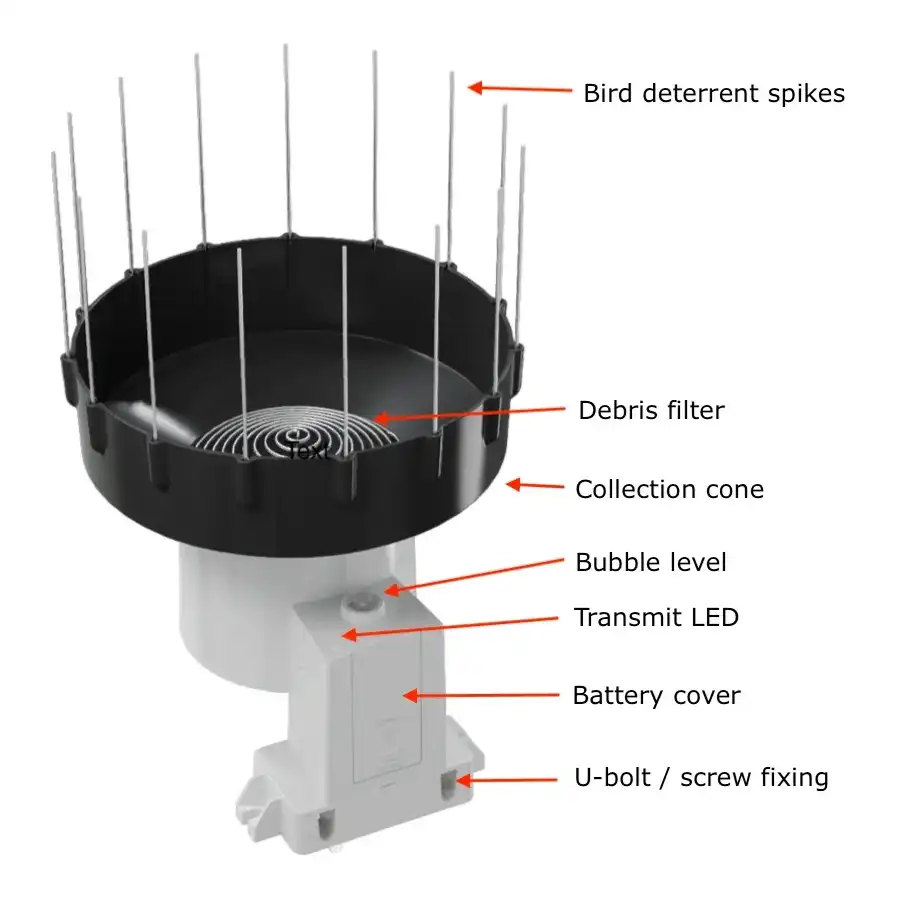

Self emptying rain gauge WH40H

• Rainfall rate and totals for day, week, month, and year
• Transmission distance in open field: 100m(300 feet)
• Measuring resolution 0.1mm
• Rainfall measuring range: 0--6000mm
• 868MHz UK and European frequency
• Sensor reporting interval: 49 seconds
• Powered by 1 x AA battery
• Installation bracket for 25-50mm pole or wooden post fixing (pole not supplied as standard)

Electronic manuals for the component parts can be found below in PDF format.

• GW1200 IoT Gateway full manual or GW1200 IoT Gateway quick start
• WS68 3-in-1 Anemometer
• WH40 Rain gauge
• WN32 Temperature & Humidity sensor
