Ecowitt LDS01 Laser Depth Sensor for Snow, Liquid, River etc

£99.00
£99.00
UK VAT included. Shipping calculated at checkout.
Product Details

The Laser Depth Sensor (LDS01) measures either depth or height of a material such as snow, a river level or a tank of liquid. Using either an Ecowitt gateway, you can upload data to the Ecowitt network to view a history of level data or view live on the supported consoles.

The sensor transmits an average reading every 60 seconds, unless a rapid change in level is detected, such as rising river level or tank leak, then this increases to every 10 seconds.

The LDS01 sensor also includes a heater to keep the sensor free of moisture and condensation so as to improve accuracy and sensor longevity.

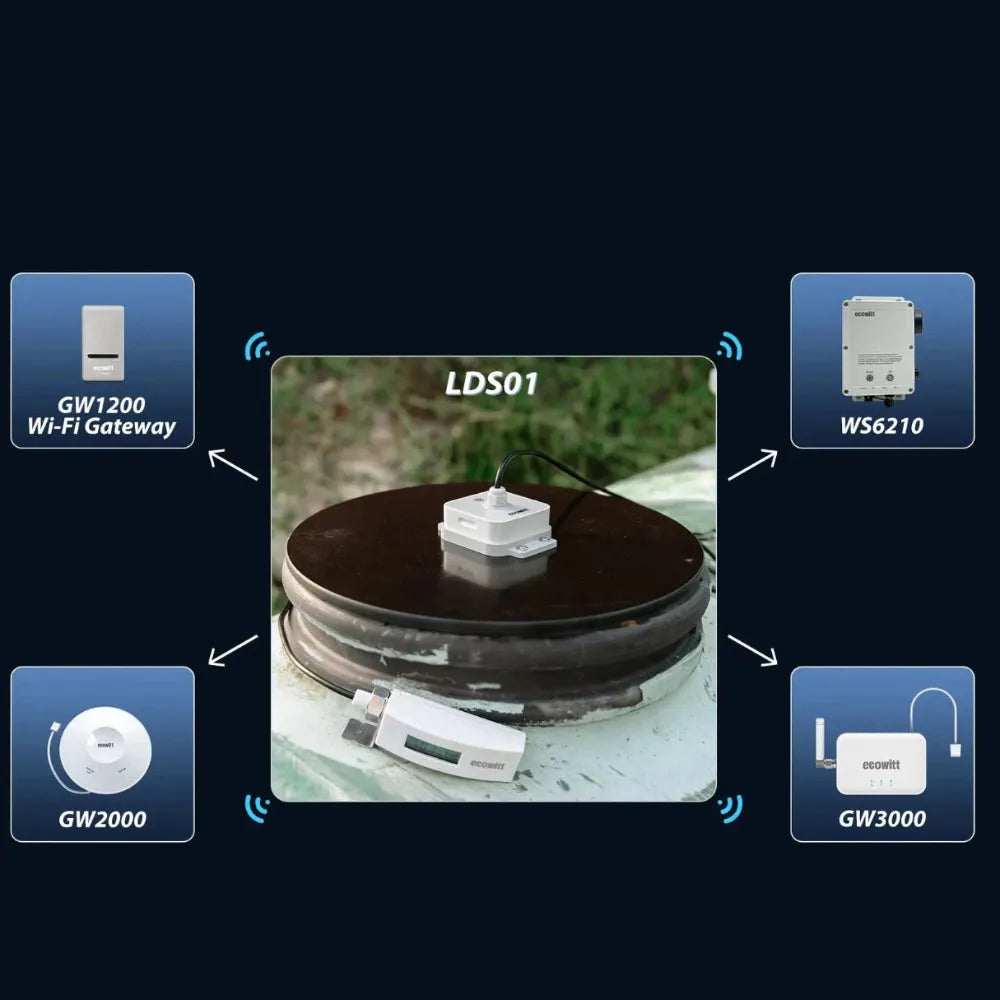

Unlike some other brands, the Ecowitt LDS01 can be used with a variety of gateways and consoles, click here to view the latest Ecowitt sensor matrix.

Features

  • Measures depth of material
  • 1 meter lead from transmitter to sensor head

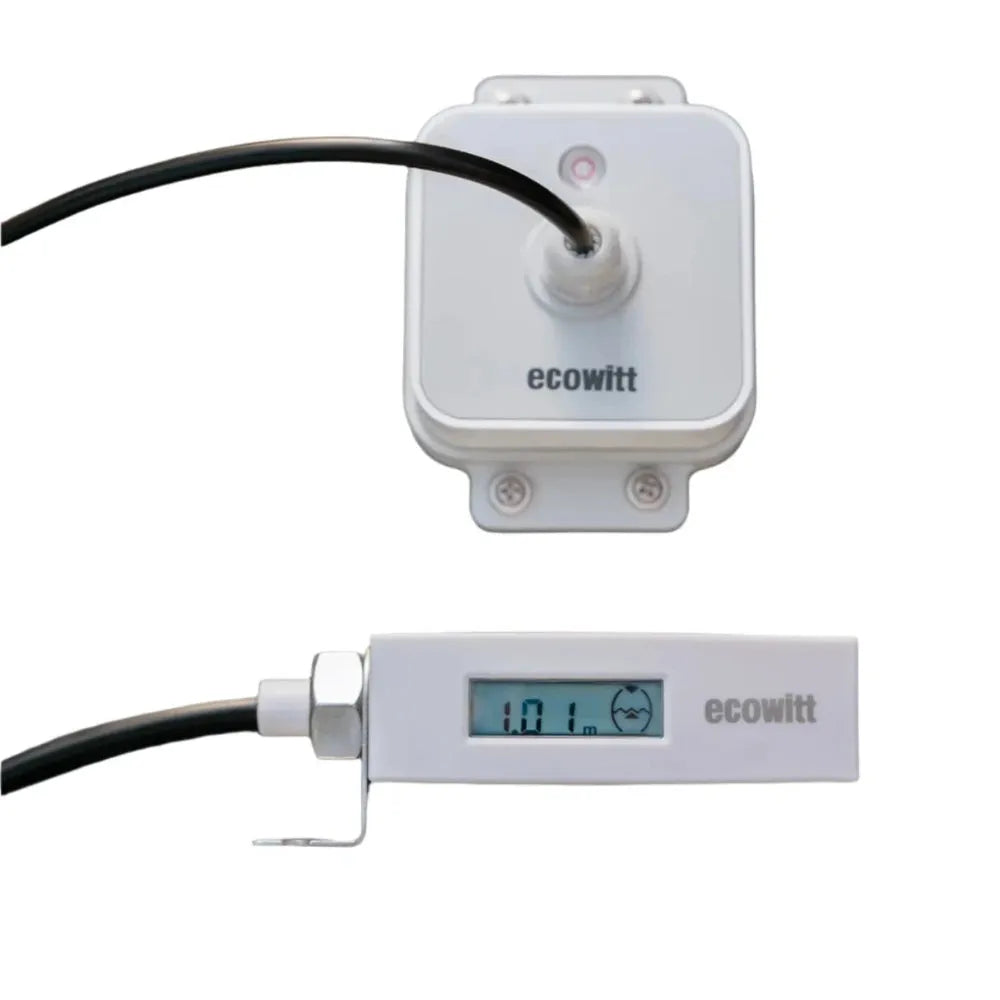

  • LCD screen for direct readings or via Ecowitt App / Website
  • Includes secondary battery for heater power
  • Connects to supported gateways and consoles (see matrix)
  • 868MHz UK / European frequency
  • Connect up to 4 LDS01 sensors per gateway
  • Upload data to the Ecowitt weather server to view history graphs and download the data from the website in Excel



Includes
  • 1 x LDS01 Sensor with battery pack
  • 1 x Mounting Bracket
  • 1 x Drill guide template
  • Assorted screws and cable tie fixings
  • User Manual


    Technical & Manual

    Technical information for the LDS01 Snow / Liquid Sensor.

    • Cable Length: 1.5m
    • Laser measurement (darkness): 0m to 4m
    • Laser measurement (in light): 0m to 3.5m
    • Laser measurement accuracy: ±2% per m
    • Laser measurement resolution: 0.01m
    • Laser Beam Angle: 5°
    • Laser Operating Temperature Range: -20℃-60℃
    • Data transmission interval when water level fluctuates: 10 seconds
    • Data reporting Interval: About 1 minute
    • RF Connection Frequency: 868MHz
    • RF Wireless Range (in open areas): Over 100 meters (in open areas)
    • LCD Operating Temperature Range: -10℃-50℃
    • HTN-LCD Screen
    • Dimensions of Probe: 87*64*87mm
    • Dimensions of transmitter: 102*25*49mm
    • Power: 8 x AA batteries (not included)

    A copy of the LDS01 manual can be viewed by clicking here.



    Product Warranty

    2 year warranty from date of purchase from May 2025, 1 year on purchases before this date - return to supplier. Batteries are excluded from warranties as they are classed as a consumable item.

    See our terms and conditions for full details of our warranty details.
