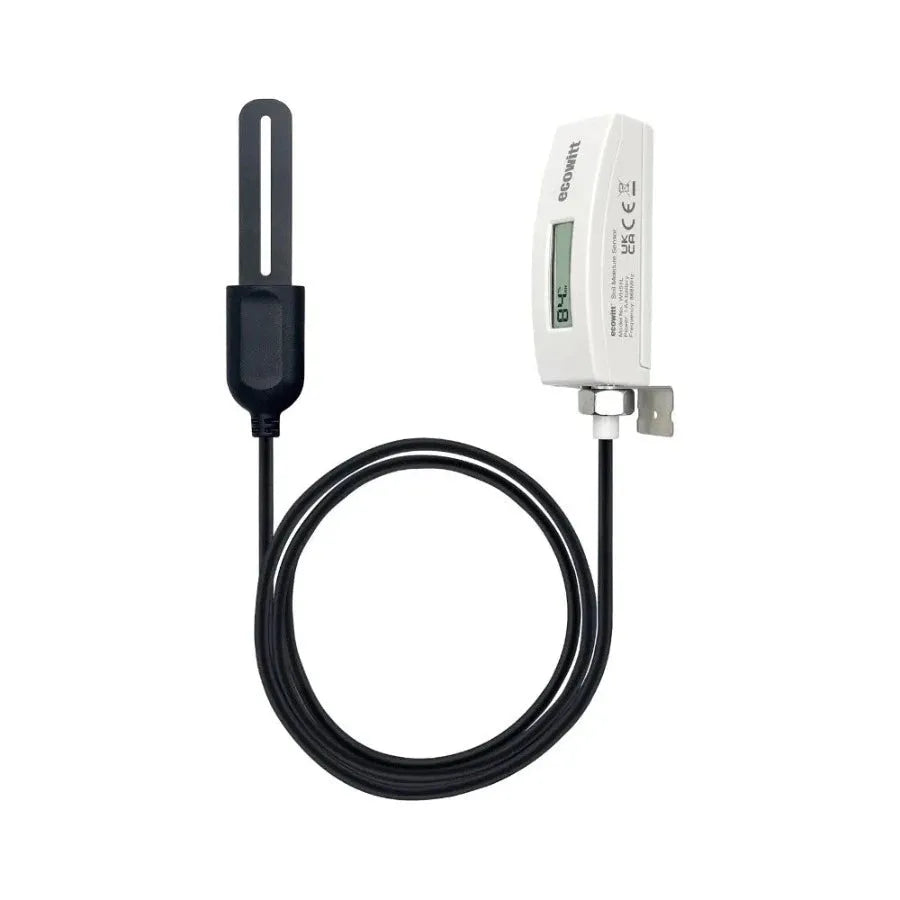

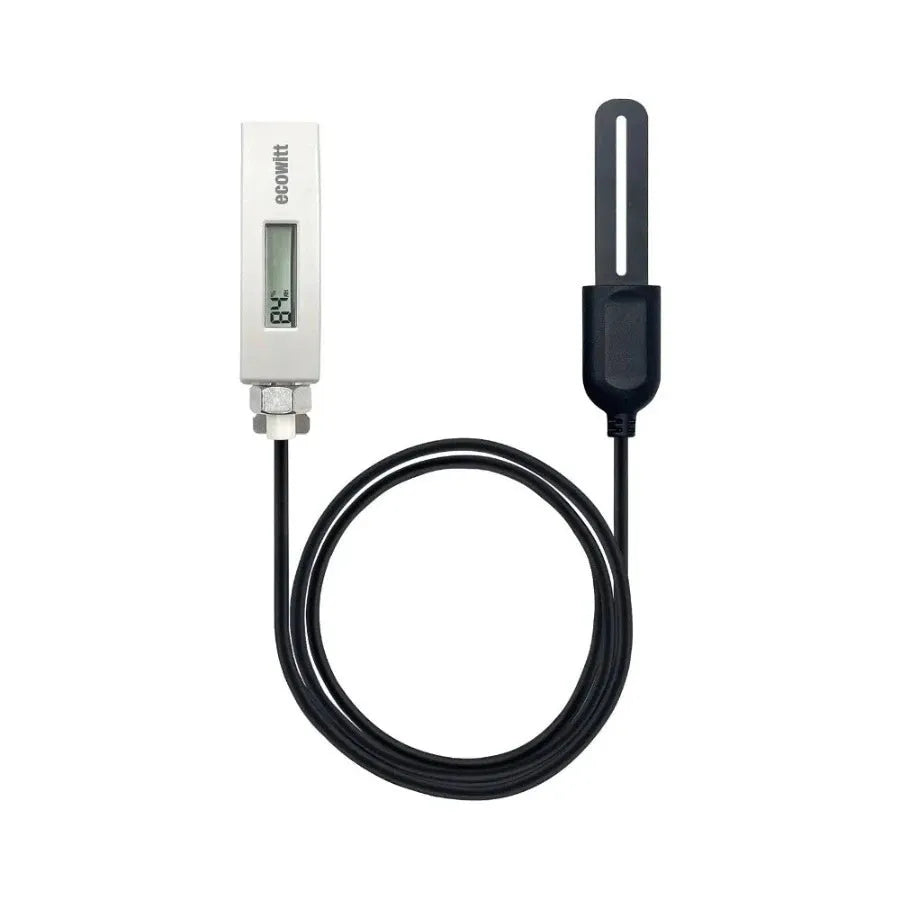

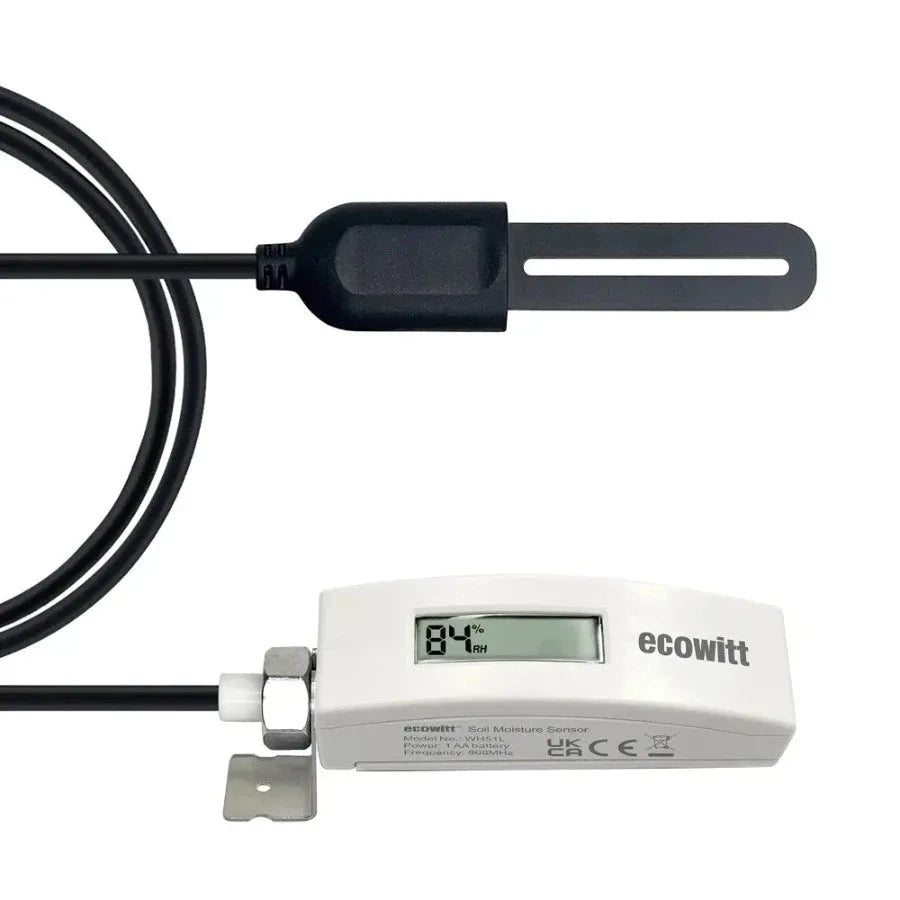

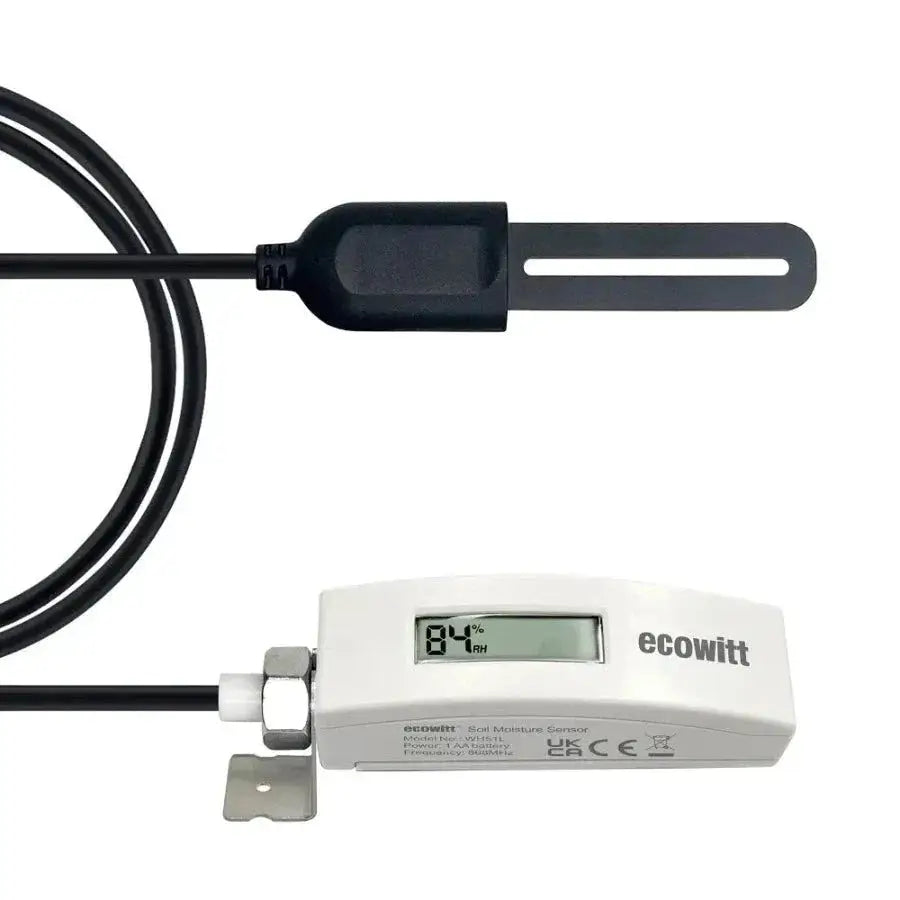

Add the WH51L sensor to the Ecowitt WiFi gateway or weather station to include soil moisture readings in you weather data. Upload data to the Ecowitt network to view a history of soil data or view live on the sensors LCD screen. This sensor comes with a choice of a 1 meter or 5 meter cabled sensor probe.

Transmits readings every 70 seconds, unless a rapid change in moisture is detected (such as irrigation) then this increases to every 10 seconds.

Either 8 or 16 sensors can be used on each console or gateway depending on age and firmware version, see matrix for details. Data is then available to view in the App, or online via Ecowitt.net and in the 3rd party websites that support this sensor type.

Features

• Measures soil moisture

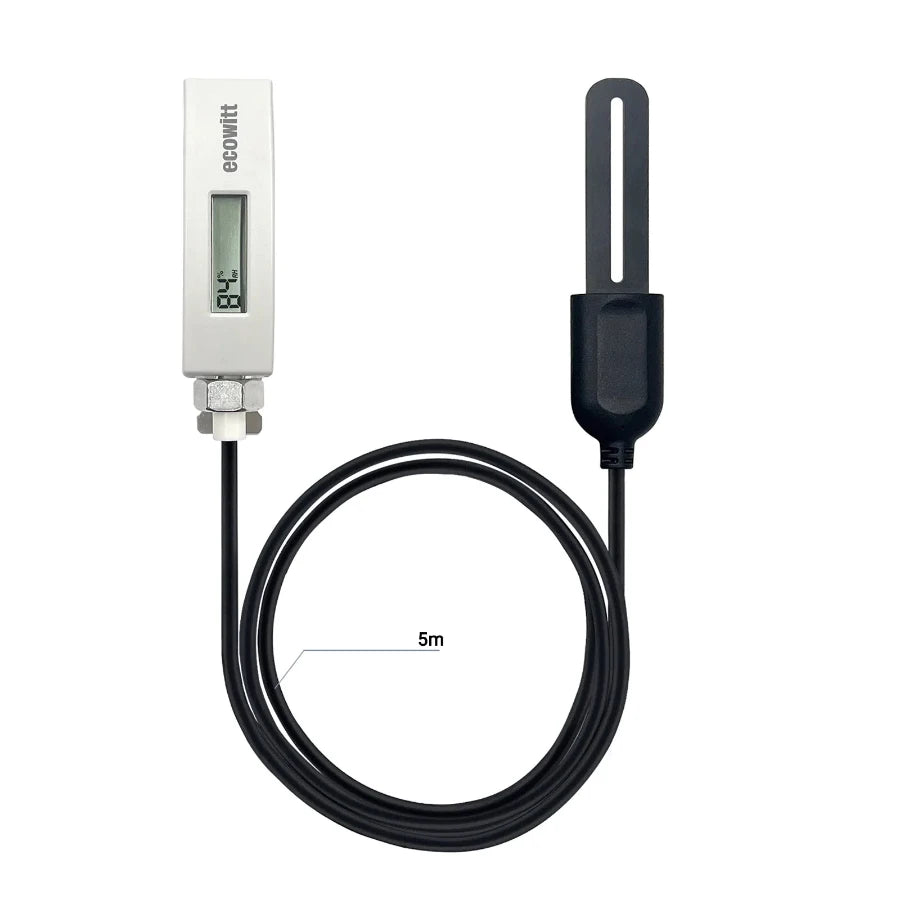

• 1 meter or 5 meter lead from transmitter head to sensor

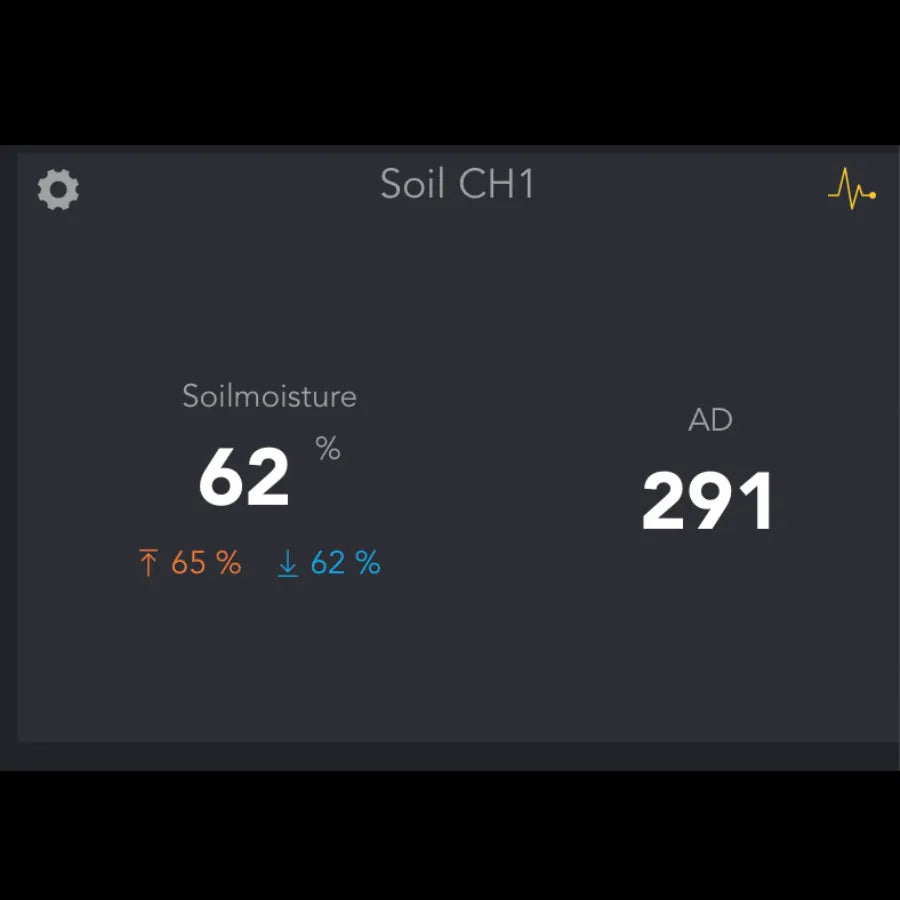

• LCD screen for direct readings or via Ecowitt App
• Configure for use with the GW1100 or GW1200 WIFI gateway or range of LCD & TFT screen weather stations
• 868MHz UK / European frequency
• Use up to 16 soil sensors depending on console/gateway pairing

• Upload data to the Ecowitt weather server to view history graphs and download the data from the website in Excel


Important Tip:

1. Do not push the sensor into stoney or rocky soil. If the soil is too hard and dry, the sensor can easily be damaged.
2. Design for testing soil ONLY.
3. It is recommended to totally insert the sensor into the soil and keep it in place for 2 to 3 minutes to get an accurate reading.

Includes

• 1 x Soil Moisture Sensor WH51LA
• 1 x Screw ST D5.8*M3*15 Stainless Steel PA for Mounting
• 1 x Stainless Steel Loop 19~298mm for Mounting
• 1 x Fix Bracket 35.1x21x20mm Stainless Steel for WN51L
• User Manual

Technical & Manual

Technical information for the WH51L soil moisture sensor.

• Moisture Range: 0~99%
• Accuracy: +/- 5%
• Resolution: 1%
• 0%AD setting range: 0~200 initial value factory calibrated
• 100%AD setting range: 0%AD+10~1000; Initial value factory calibrated
• Transmission distance in open field: 100m (300 feet)
• 868MHz UK / European frequency (A suffix)
• Sensor reporting interval: 70 seconds / 10 seconds during rapid changes
• Operating Temperature: -10°C to 50°C (14°f to 122°f)
• Transmitter Housing Waterproof Level: IP66
• Sensor Probe Waterproof Level: IP68
• Power: 1 x AA LR6 Alkaline battery

A copy of the WH51L manual can be viewed by clicking here.

Important Tip:

1. Do not push the sensor into stoney or rocky soil. If the soil is too hard and dry, the sensor can easily be damaged.
2. Design for testing soil ONLY.
3. It is recommended to totally insert the sensor into the soil and keep it in place for 2 to 3 minutes to get an accurate reading.
