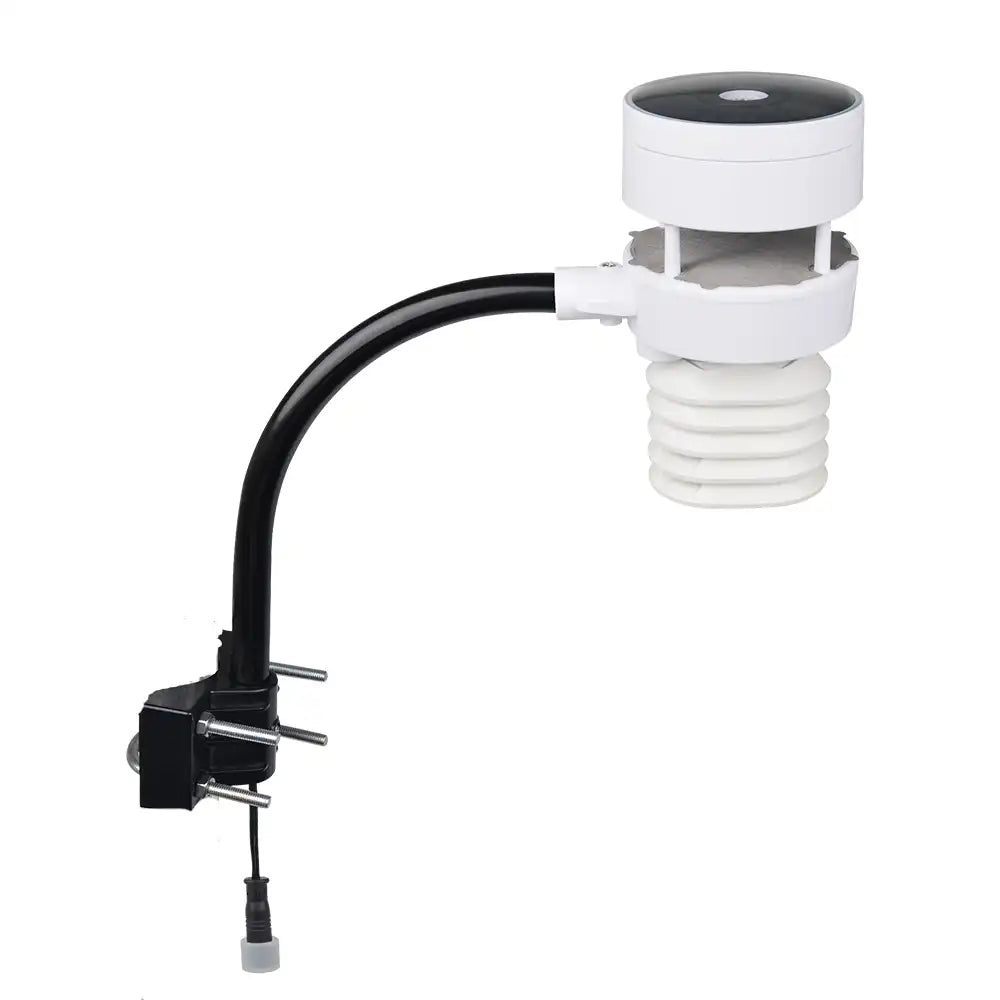

Ecowitt WS80 Ultrasonic Anemometer, UV, Light, Temperature & Humidity 6-in-1 Sensor

Regular price: £110.00 GBP
Sale price: £110.00 GBP
Regular price

UK VAT included. Shipping calculated at checkout.

4 reviews

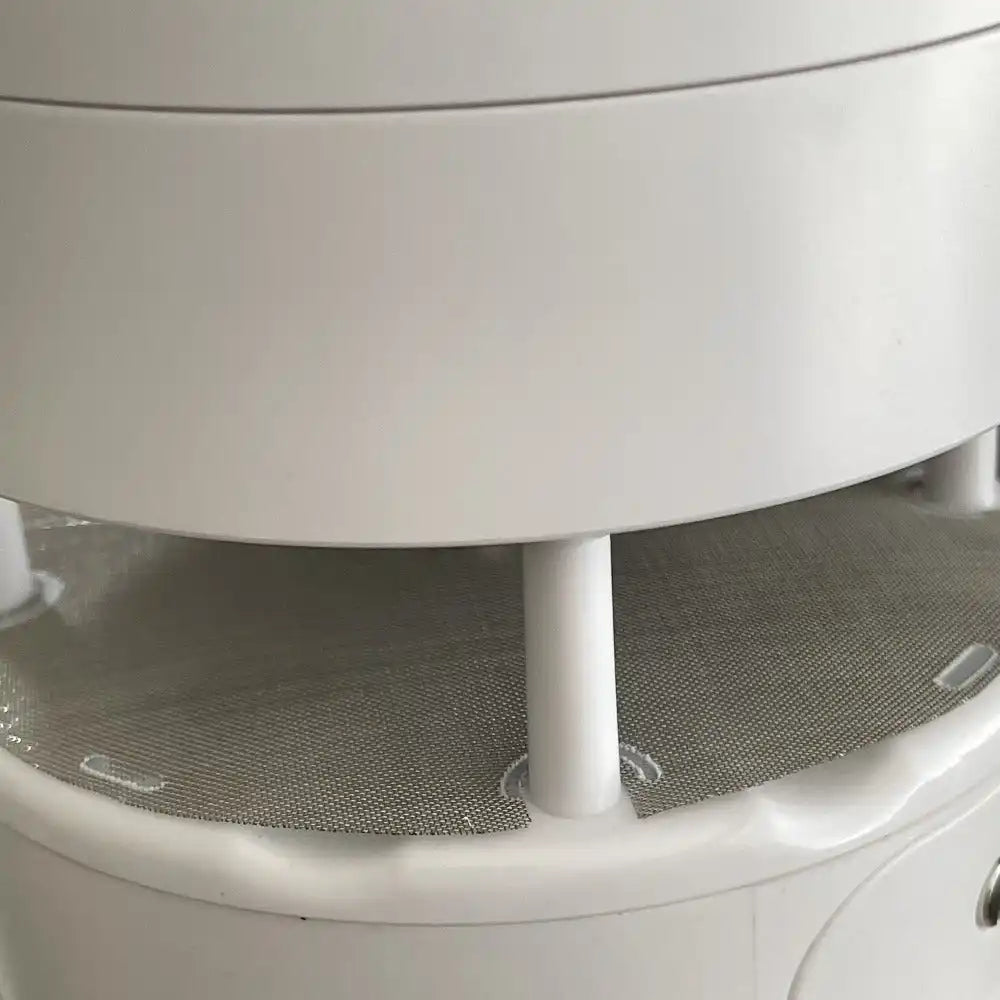

Add the WS80 solar powered ultrasonic anemometer with light, temperature and humidity to the Ecowitt WiFi gateway to obtain additional readings on your system. This revised sensor has no moving parts and an improved sensor plate for better performance during rain events.

Features

Measures the following attributes
- Wind direction
- Wind speed
- UV
- Light level
- Temperature
- Humidity
For use with an existing Ecowitt display console or WIFI gateway

To see how many of each variety of sensors your equipment supports, click here to view the latest Ecowitt sensor matrix.

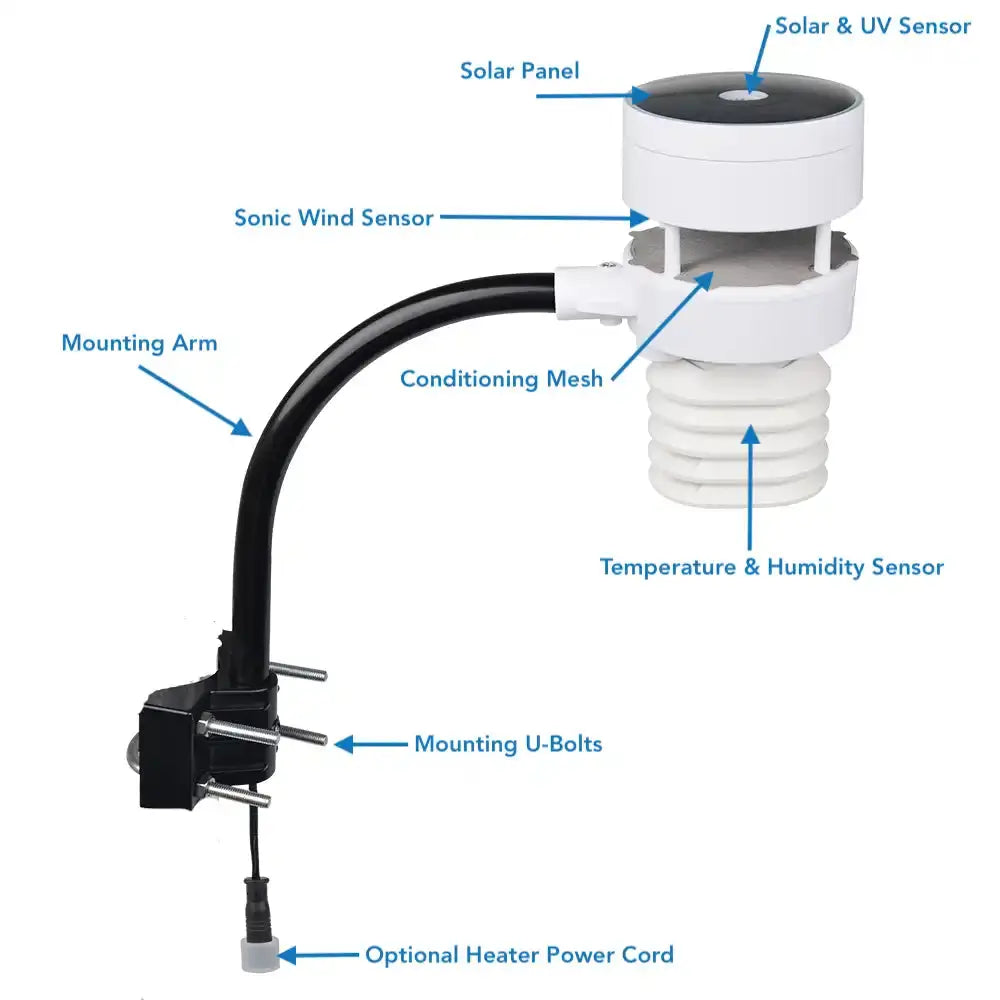

Included

Ultrasonic 6-in-1 Sensor sensor array with revised design for improved accuracy during rainfall. (NO Console or gateway)
Mounting Arm
One set of U-bolts for installation on 1.25 "to 2" / 30mm to 50mm pole (not supplied)
User Manual

Technical & Manual

Transmission distance in open field: 150m (490 feet)
868MHz UK and European frequency
Wind speed range: 0 - 40 m/s (0 - 89 mph)
Wind speed accuracy: ±0.5m/s (1.5 mph) at speeds of < 10 m/s (22 mph) and ±5% at speeds of ≥ 10 m/s (22 mph)
Wind gust: maximum of last 28 seconds
UV-Index range: 0 - 15
Light range: 0 – 120 kLux
Light accuracy: ± 15%
Sensor reporting interval: 4.8 seconds
Power consumption
Solar panel (built-in): 6.5V/4mA
Backup Power: 2 x AA 1.5V LR6 Alkaline or 2 x AA 1.5V Lithium batteries (not included)

The manual for the WS80 Ultrasonic Anemometer with UV, Light, Temperature and Humidity can be viewed by clicking here.

Radio Frequency:

Product variants:

{"id":44257537261784,"title":"10 meter cable","option1":"10 meter cable","option2":null,"option3":null,"sku":"ECOWSONICPOWER10","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ecowitt Ultrasonic Anemometer Heater Power Supply with Cable - 10 meter cable","public_title":"10 meter cable","options":["10 meter cable"],"price":4900,"weight":650,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Ecowitt Ultrasonic Anemometer Heater Power Supply with Cable_weatherspares_co_uk

optional anemometer heater 10m £49.00 ⓘ

Available in two low voltage cable lengths or 10 or 20 meters.

The power supply allows for heating and deicing of the anemometer sensor on Ecowitt models. It converts the mains 220v down to 12 volts making the cable safe to run outside to the sensor.

The heater can also power later models of the WS90 sensor, however, the backup AA batteries are still recommended.

{"id":44257537229016,"title":"20 meter cable","option1":"20 meter cable","option2":null,"option3":null,"sku":"ECOWSONICPOWER20","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Ecowitt Ultrasonic Anemometer Heater Power Supply with Cable - 20 meter cable","public_title":"20 meter cable","options":["20 meter cable"],"price":5900,"weight":950,"compare_at_price":null,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

optional anemometer heater 20m £59.00 ⓘ

Available in two low voltage cable lengths or 10 or 20 meters.

The power supply allows for heating and deicing of the anemometer sensor on Ecowitt models. It converts the mains 220v down to 12 volts making the cable safe to run outside to the sensor.

The heater can also power later models of the WS90 sensor, however, the backup AA batteries are still recommended.

{"id":44040827011288,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"ECORAINBZ","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer","public_title":null,"options":["Default Title"],"price":1600,"weight":60,"compare_at_price":null,"inventory_management":"shopify","barcode":null,"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}

Bird Deterrent Z-spikes for Rain Funnel or Sonic Anemometer_weatherspares_co_uk

add bird deterrant spikes £16.00 ⓘ

Reduce the chances of birds perching and pooping into your rain gauge causing blockages with the 'Z' deterrent spikes. Also suitable to prevent perching on haptic rain sensors.

Shipped on Monday 15th June, see home page for delayed shipping discount.

Quantity

Customer Reviews

Based on 4 reviews

Write a review

100%

(4)

(0)

geoff

Gives accurate wind speed and gusts

Much more sensitive than the Davis anemometer. Must be used with an hp2550 console. Easy to pair it with the console.

Mark R.

868MHz UK/EU

Replacement works well

Installed easily as a replacement for an existing model. Fittings all the same. Pairing trouble-free. It’s a bit disappointing that I needed to buy the replacement after only 3 years.
